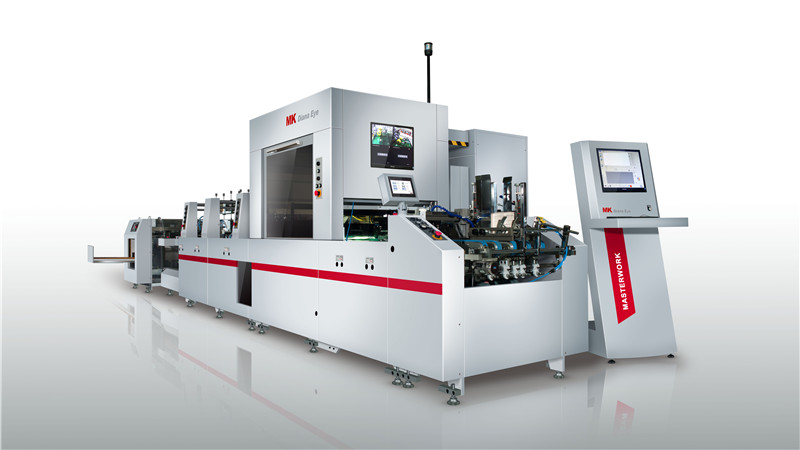

Blank Ejection
- Inline ejection of fault blanks without damaging
- Resorting or re-inspection of fault blanks possible
- Minimizing waste without compromising quality
- Inspection Section

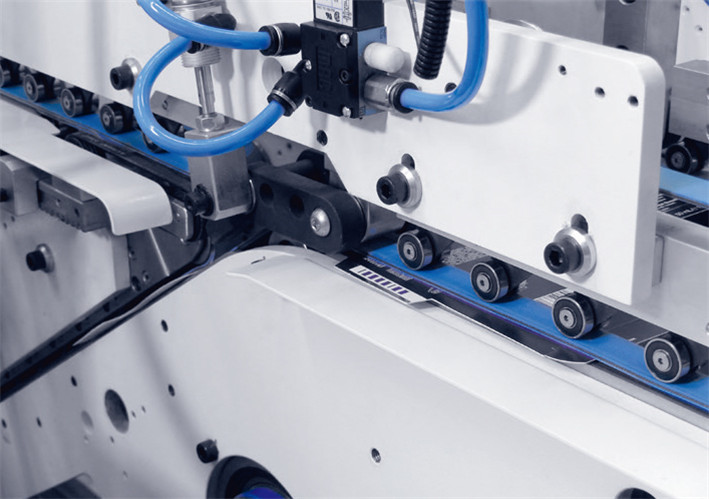

- Suction belt for safe and stable blank transport

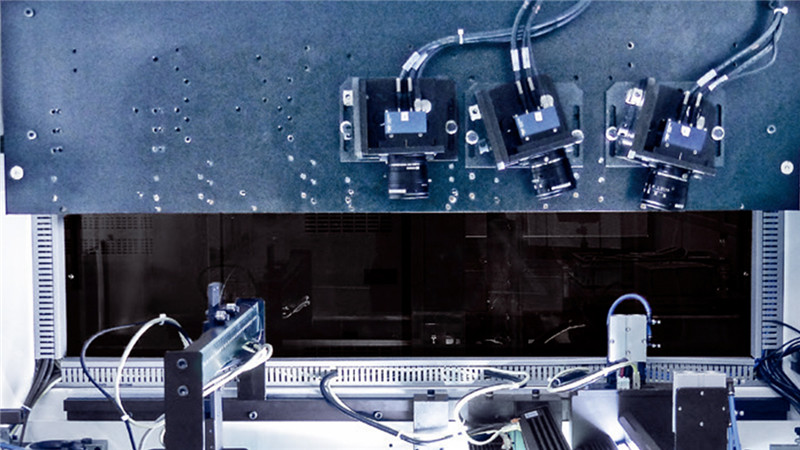

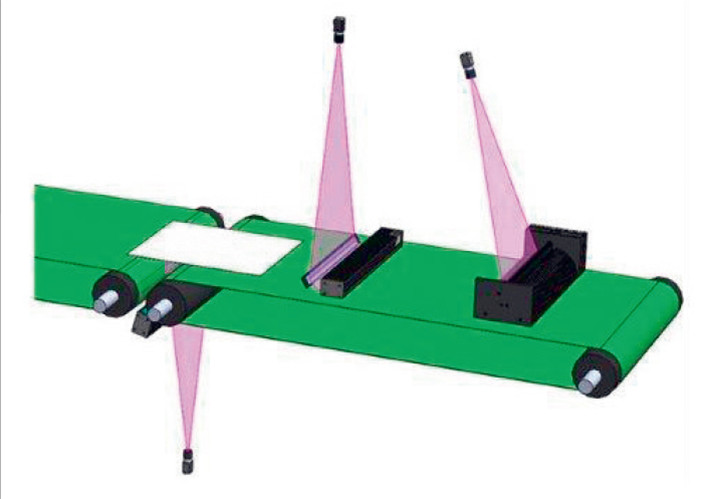

- Space for up-to 4 cameras from above, 2 area cameras, 1 back side camera
- Easy to retrofit cameras
- Darkened window to screen user from view into active LED

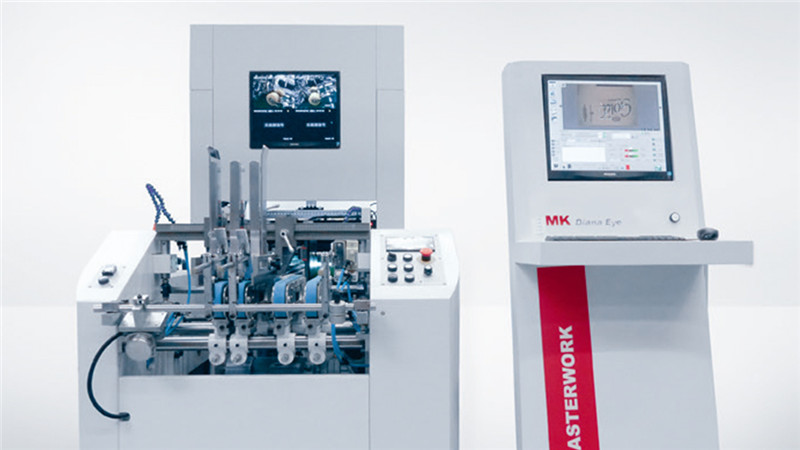

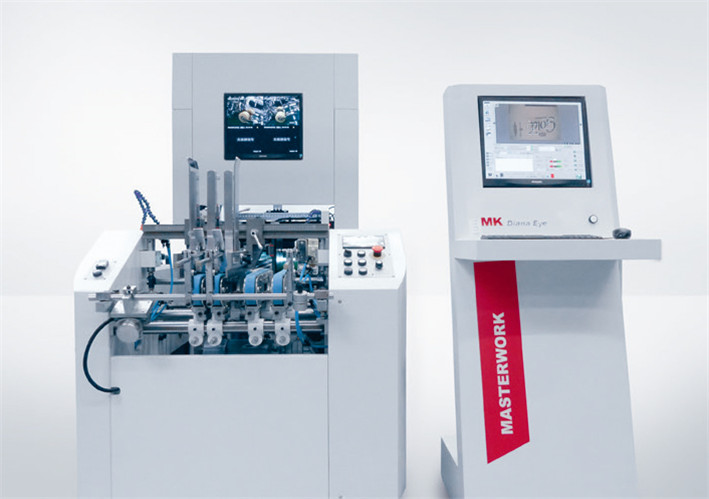

Operator Interface
- Operator terminal with 19” screen
- Easy to set up by teaching process

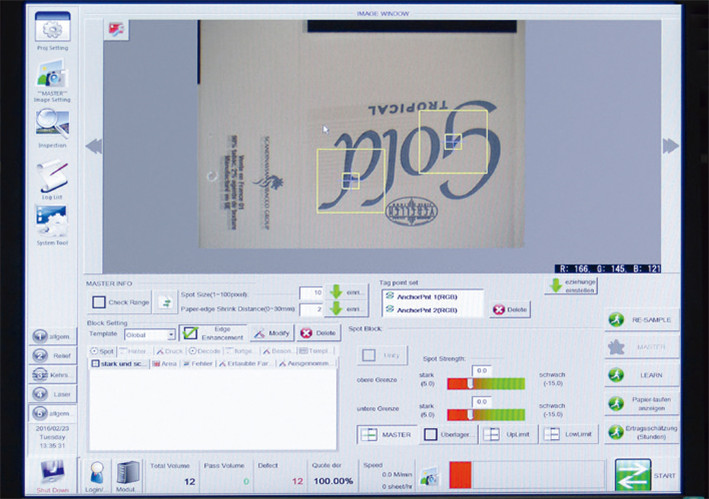

- Visualization of threshold setting
- Advanced setting possibilities for challenging applications.
Image Processing
- GPU+CPU Computing for fast data processing of huge image data
- Master and Slave solution
- Easy to retrofit
Light Sources

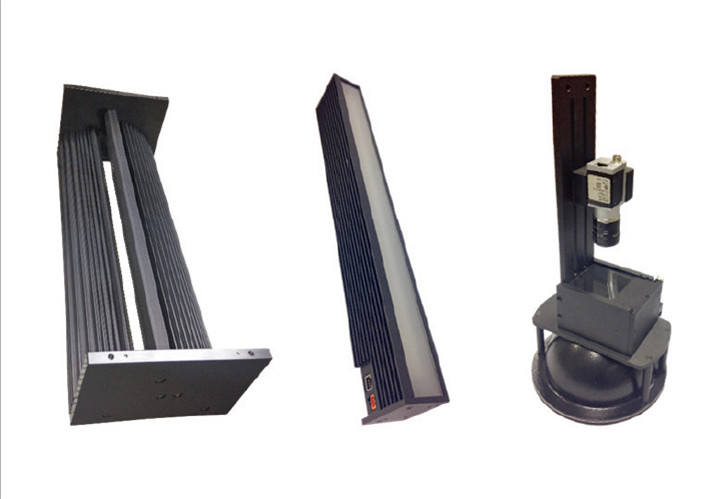

- A unique light dome
- Four different illumination modes applicable
- Makes metalized substrate, hot foil and hologram applications visible
- Aluminum housing keeping the light source cool without air blowers
- Adjustable light intensity
Cameras
- 4K color cameras for inspection from above in combination with a new LED-Lighting technology
- Mirror System for low-angle inspection
- 4K colorful camera for inspection of back side
- Area cameras with highest resolution for inspection of critical areas e.g. QR-Codes
| Processable material | 90 - 650 g/m2 cardboard |
| Max. speed | 300 m/min |
| Max. Output (e.g.90mm long small format package): | 80,000 s/h |
| Max. sheet size | 550 X 500 mm |
| Min. sheet size | 90x 90 mm |
| Minimum spot size | 0.15mm2 (gray value contrast ≥30) |
| Minimum line size | 0.25mmx5mm (gray value contrast ≥30) |
| CV | >2.5 |
| Cameras | 4K Color camera RGB |
| Pixel | 4K |
| Camera line rate | 40 k/s |
| Resolution at 550mm / 300M/min | 0.13 x0.15 mm |
| 8K mono camera B/W | |
| Pixel | 8K |
| Camera line rate | 80 k/s |
| Resolution at 550mm / 300 M/min | 0.067 x0.075 mm |
| Area Camera RGB | |
| Pixel | 1.2 M |
| Camera line rate | 45 fps |
| Resolution at 550mm / 300M/min | 0.04 x0.04 mm |
