Automatic Gluing Machine Corrugated Box

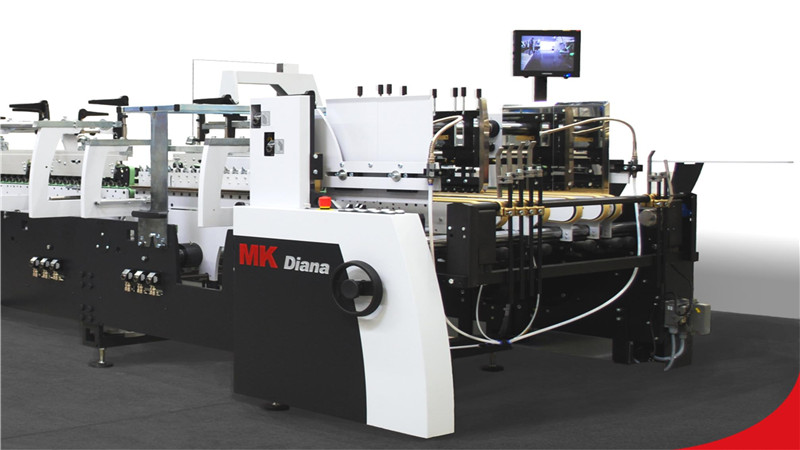

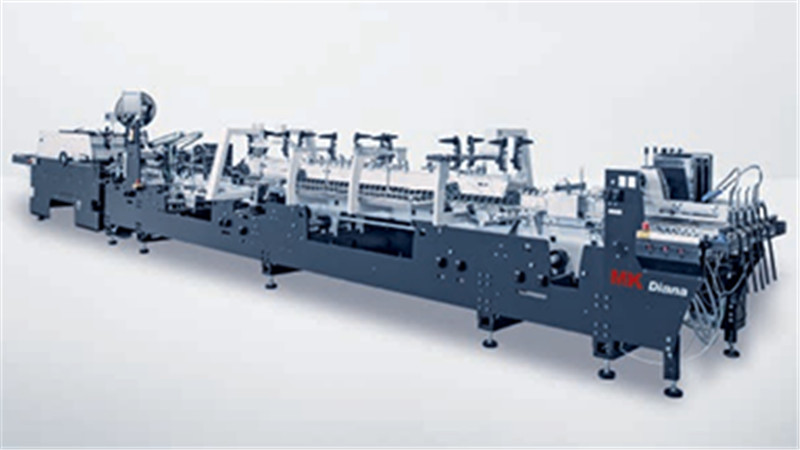

Diana Go 85

Diana Go 85 was developed as part of latest requirements collected by the MK development team in Neuss, Germany. For commercial and packaging printing, it is a cost-effective and flexible machine with space-saving features. It can handle different types of straightline and lockbottom folding cartons, as well as envelopes or CD covers. Diana Go can operate at a speed of 300 m/min to fit over 9-meter items.


Inquire Now
  • Product Features
  • Technical Parameter
  • PDF Brochure
  • Product Video

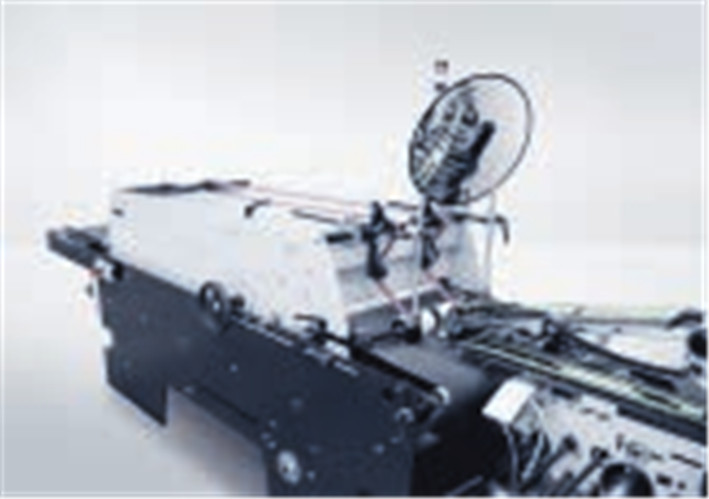

Feeder and Alignment

Feeder and Alignment

  • Designed for fast set-up
  • Friction belts with fast positioning carriers
  • Friction belt change in less than one minute without pulling driving shafts
  • Precise length and pressure adjustments of feeder gates for excellent control of even odd shaped boxes
  • Suction feeder system (optional)
  • Blank alignment (optional)
  • Alignment possible to the right or left side
  • Adjustment of alignment ruler sideways up to 40 mm

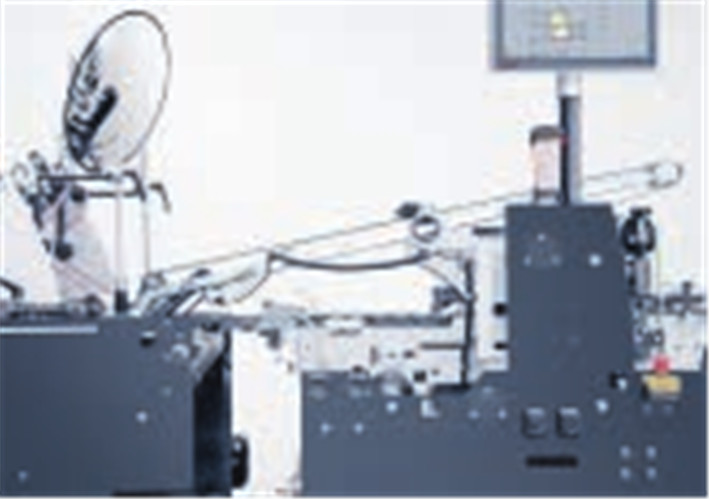

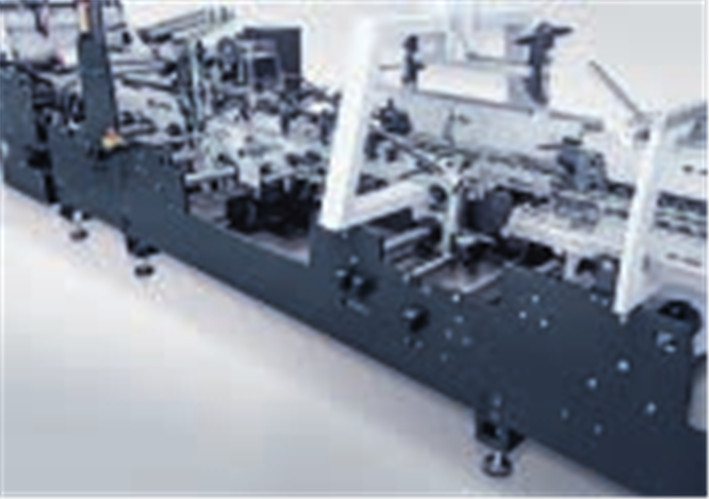

Prefolding Module

Prefolding Module

  • Excellent accessibility thanks to low side frames on the operator-and drive side
  • Prebreaking for crease lines 1 and 3
  • Prepared for code reader
  • Lockbottom carton attachment (optional)

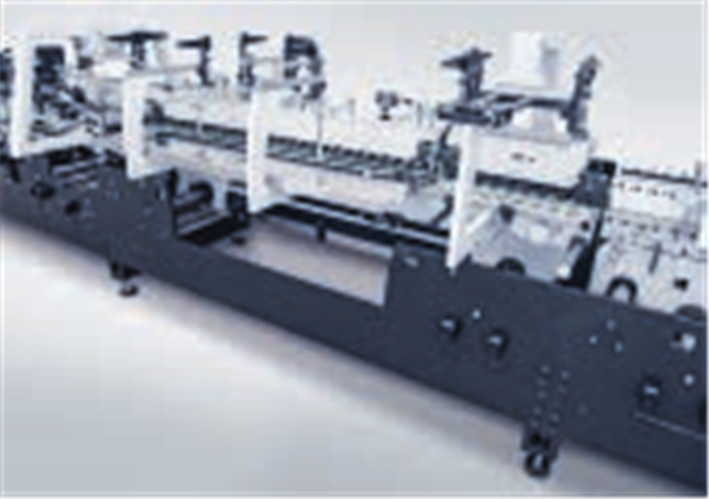

Folding Station

Folding Station

  • Upper right and left blank transport with slideable roller bars
  • Left-before-right folding
  • Central carriers as option: upper and lower roller bar can be easily installed and removed due to the light-weight design
  • Belt folding enables minimum sizes of 45 mm open blank width (optional)

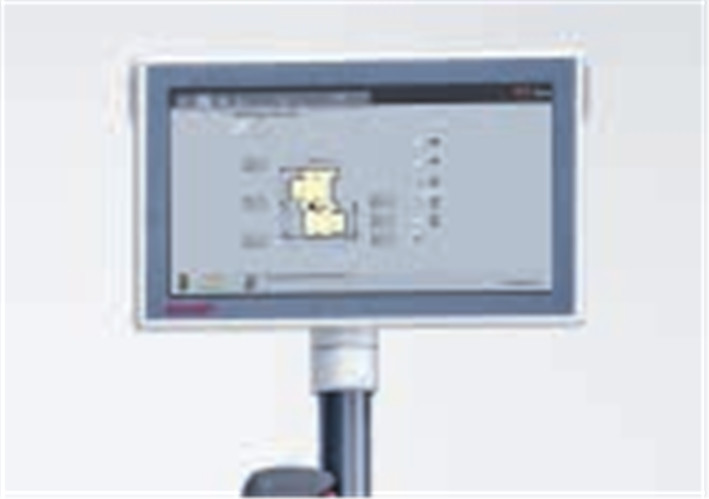

Machine Interface and Automation

Machine Interface and Automation

  • Touchscreen control panel for comfortable machine operation
  • Easy, intuitive handling of machine interface with self-explanatory navigation menu
  • Manu-Set function

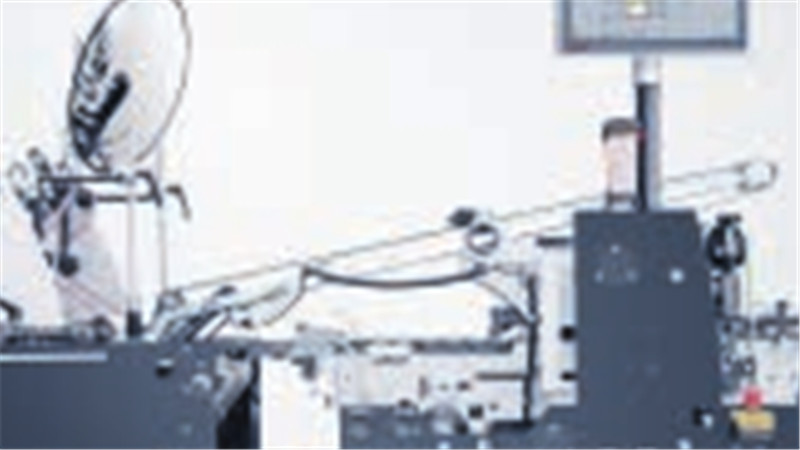

Transfer Section

Transfer Section

  • Two upper and two lower carriers
  • Manual adjustment of both upper and lower carriers
  • Ejector (optional): Linear- or Rotary ejector

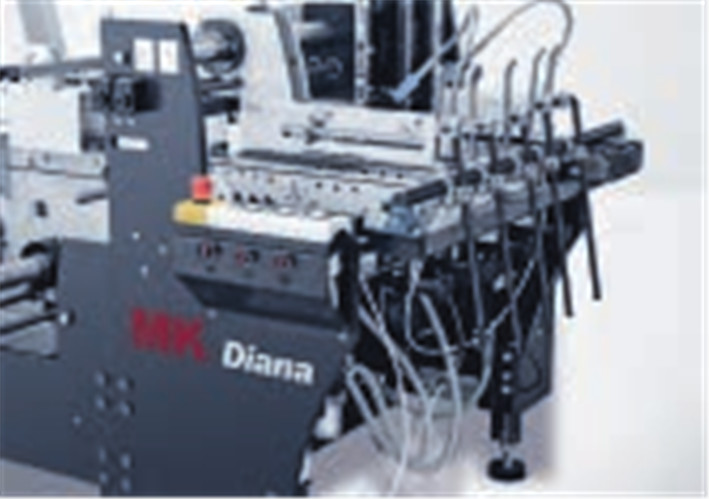

Compression Section

Compression Section

  • 600 mm wide compressing belt
  • 1,6 m Pressing Section
  • Soft rubber belt for precise pressure balance (optional)
  • Start/Stop function (optional)
Max. Speed300 m/min
Material (carton)200- 600 g/m2
Material (corrugated board)N/E/F micro-currugated board
Min. carton width75 mm (45 mm option)
Max. carton width850 mm
Max. machine length9,840 mm (Alignment module optional)
Weight4.3t

For more information, please download the PDF brochure, or click "Contact" to subscribe

Click download

For more information, please download the PDF brochure, or click "Contact" to subscribe
