Non-stop Feeder
- Suction head for paper, board and corrugated board
- Suction head with quick positioning function
- Pile platform with motorized side pile adjustment.
- Mechanical double-sheet detection

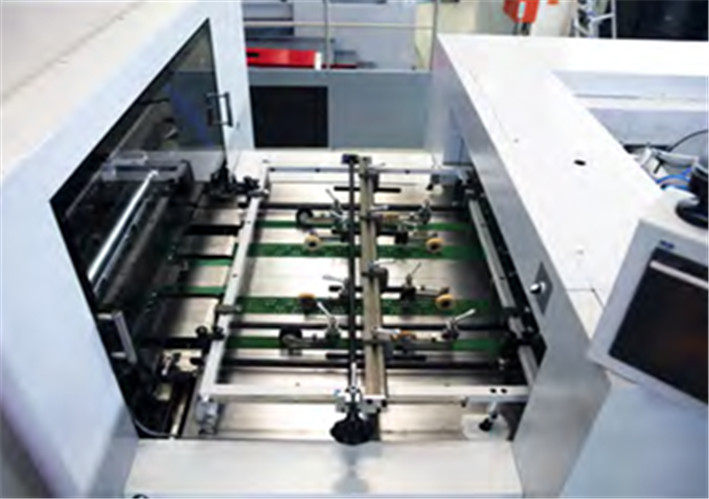

Feed Table
- Suction belt table
- Central adjustment system for roller and brushes
- Sheet slow down device
- Register system

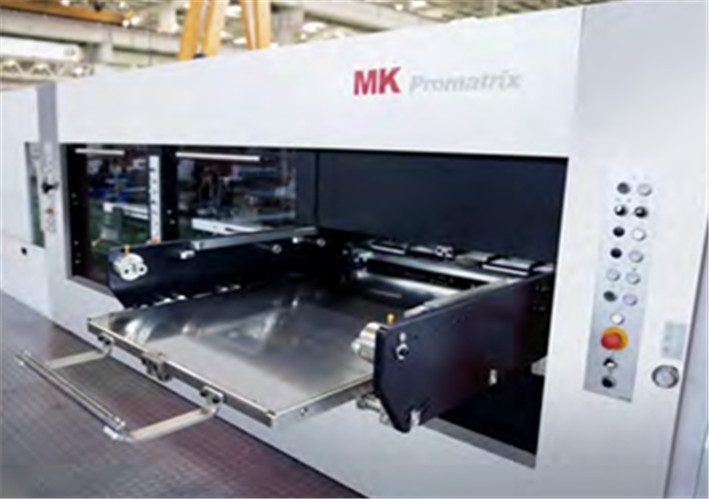

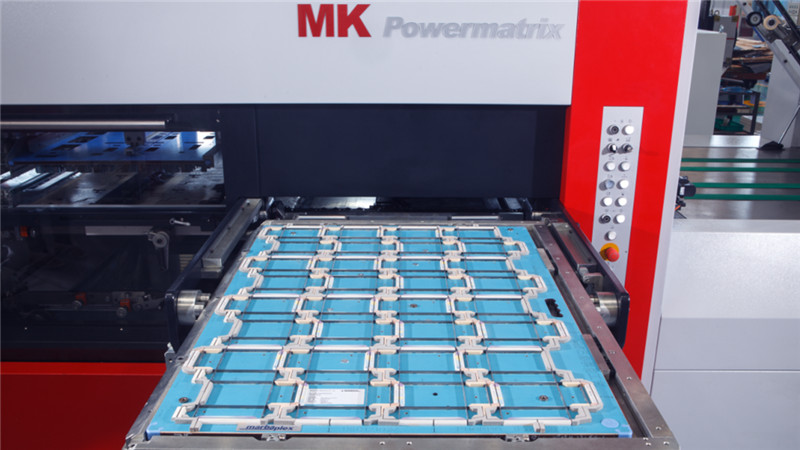

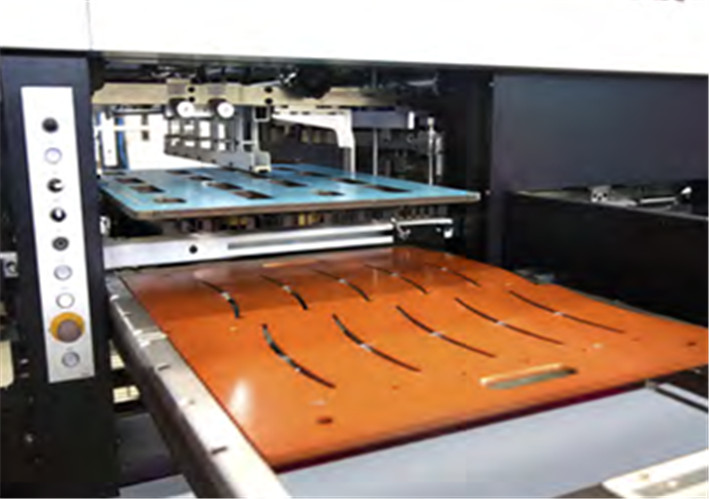

Cutting Station
- Register system
- Motorized cutting pressure adjustmen
- Pneumatic locking device for die-cutting chase and cutting plate
- Cutting plate fine adjustment
- Air cushion for easy cutting plate handling
- Quick lock chase
- Chase changer (optional)

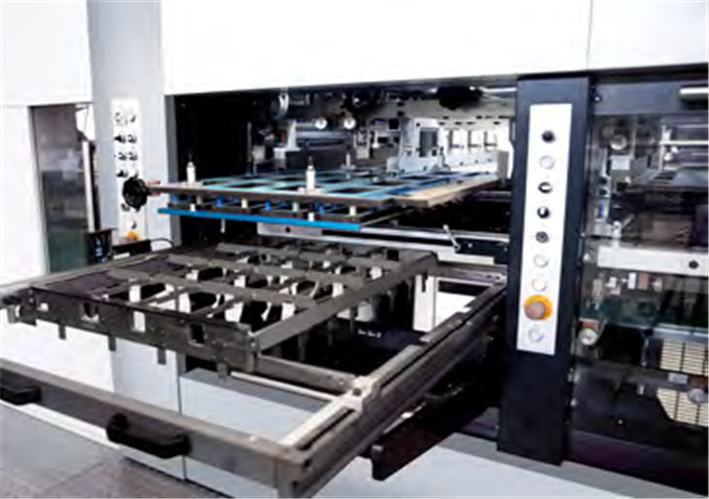

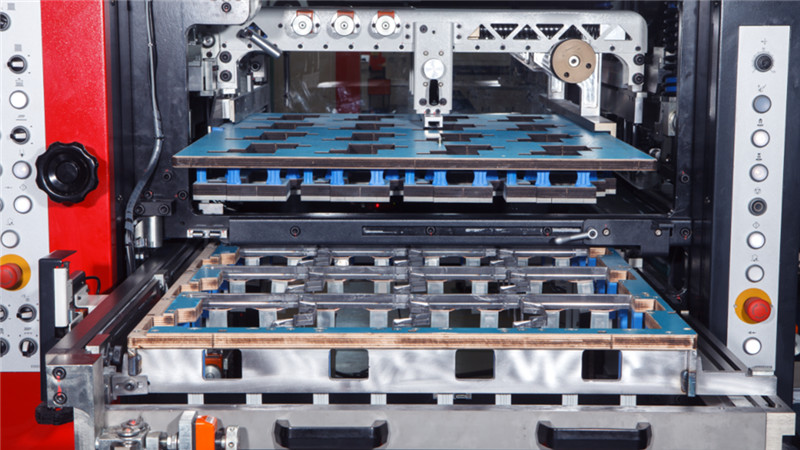

Stripping Station
- Register system
- Integrated quick lock systems for all tools (top, middle, bottom)
- Fine adjustment of tools with position indicators,Pre-make-ready table (optional)

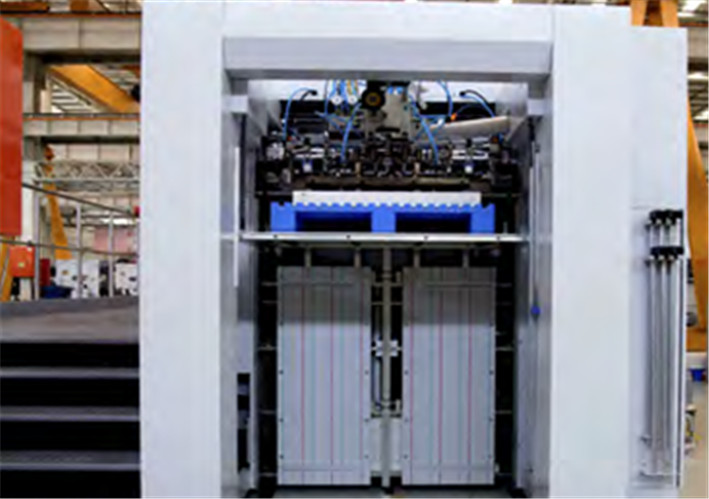

Blanking Station
- Integrated quick lock system for all tools
- Fine adjustment of tools with position indicators
- Non-stop operation
- Automatic pallet change system,Tie sheet inserter
- Vacuum bar

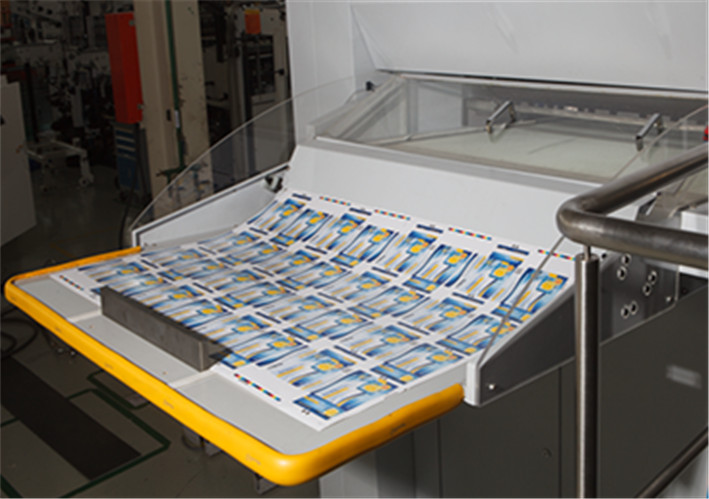

Sample Sheet Removal
- Sampling at any time, reducing scrap rate and improving efficiency
- Sampling can be carried out at any time during the production process, and the samples are transported to the sampling table
- The production quality can be checked conveniently and quickly, realizing convenient operation.
- Reduced downtime and scrap rates, increasing productivity
| Suitable material: | |
| Paper (min.) | 90g/m2 |
| Carton Board (max.) | 2,000 g/m2 |
| Corrugated Board (max.) | 4 mm |
| Performance data: | |
| Sheet size (max.) | 760x 1,060 mm |
| Sheet size (min.) | 350 x 400 mm |
| Cuting pressure (max.) | 2.6 MN / 260t |
| Machine speed (max.) | 7,500 s/h |
| Pile heights (incl. Pallet): | |
| Feeder pile height (max.) | |
| - w/o non-stop | 1,500 mm |
| -in non-stop operation | 1,200mm |
| Delivery pile height (max.) | 1,200 mm |
For more information, please download the PDF brochure, or click "Contact" to subscribe
